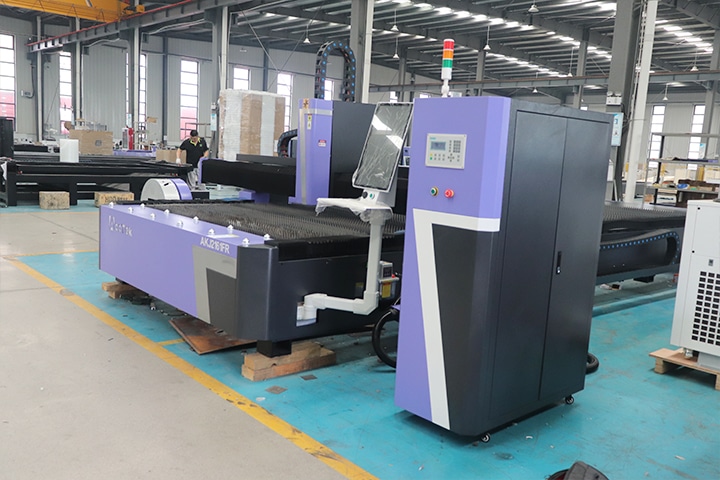

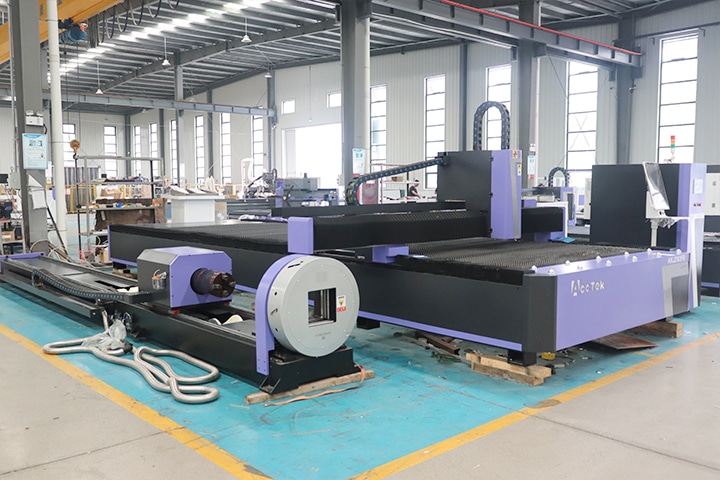

15KW Laser Cutting Machine

The price of a 15KW laser cutting machine typically ranges from $85,000 to $120,000. The final cost can vary depending on factors such as the manufacturer, additional features, automation options, and customization requirements. Machines with advanced features like automatic loading/unloading systems, advanced control systems, or enhanced cooling units may be on the higher end of the price range.
It’s important to consider not just the purchase cost but also long-term factors like maintenance, operational costs, and training, which can influence the total investment in the machine. Proper evaluation based on your specific production needs and cutting requirements will help determine the best value for your investment.

The 15KW laser cutting machine is designed to efficiently cut a wide range of metal materials, each offering distinct advantages.

• Carbon Steel: This machine excels in cutting carbon steel, which is widely used in construction and manufacturing. The high power of the 15KW laser allows for fast cutting speeds and clean edges, making it ideal for both thin and thicker sheets. The precision provided by the laser ensures minimal heat-affected zones, resulting in a high-quality finish.
• Stainless Steel: Cutting stainless steel with a 15KW laser is highly efficient due to its ability to produce precise, clean cuts while minimizing distortion. The high power enables it to cut through thicker sheets, providing smooth edges and reducing the need for post-processing.
• Aluminum: Aluminum is a reflective material that can be challenging to cut, but with a 15KW laser, this machine can handle it effectively. The power enables faster cutting speeds without sacrificing edge quality, even on thin aluminum sheets, making it ideal for applications in industries like automotive and aerospace.
• Brass & Copper: Both brass and copper are challenging to cut due to their reflective properties, but the 15KW laser cutting machine delivers clean, precise cuts with minimal oxidation. This ensures smooth edges and high-quality results on these non-ferrous metals, making it a reliable option for electrical and decorative applications.

The 15KW laser cutting machine is highly efficient for cutting these metals, offering advantages such as speed, precision, and high-quality finishes, even for complex and thick materials.

The 15KW laser cutting machine can cut a variety of metal materials with remarkable precision and efficiency. The thicknesses it can handle for different materials are:

• Carbon Steel: Capable of cutting up to 50mm thick carbon steel, making it ideal for heavy-duty industrial applications and structural components.
• Stainless Steel: It can cut stainless steel up to 50mm thick, ensuring high-quality cuts even for thick, corrosion-resistant materials used in industries like aerospace and food processing.
• Aluminum Alloy: The machine can cut up to 40mm thick aluminum alloy, which is ideal for industries like automotive, aviation, and manufacturing where lightweight and durable materials are required.
• Brass: It can cut brass up to 20mm thick, suitable for applications in electrical components, jewelry, and other precision tasks.
• Copper: The machine can handle up to 10mm thick copper, providing clean cuts for applications in electronics, electrical systems, and specialized industrial uses.

This wide range of cutting capabilities makes the 15KW laser cutting machine versatile and reliable for high-precision cutting in various industries.

The cutting speed of a 15KW laser cutting machine depends on several factors, including material type, thickness, cutting parameters, and the assist gas used. However, here are general guidelines for cutting speeds on various materials:

1. Carbon Steel:

• 1-5 mm thickness: 20-60 meters per minute (m/min)
• 6-12 mm thickness: 5-19 m/min
• 13-50 mm thickness: 0.2-5.5 m/min
• Explanation: Faster cutting speeds are achieved with thinner sheets, but as the thickness increases, the speed slows to maintain precision and quality.

2. Stainless Steel:

• 1-3 mm thickness: 35-60 m/min
• 4-8 mm thickness: 10-29 m/min
• 9-50 mm thickness: 0.2-10 m/min
• Explanation: Stainless steel cuts slower than carbon steel due to its higher hardness and reflective surface, which requires slower speeds for precision.

3. Aluminum:

• 1-2 mm thickness: 35-52 m/min
• 3-6 mm thickness: 12-27 m/min
• 7-40 mm thickness: 0.25-10 m/min
• Explanation: Aluminum is highly reflective, and while it allows for high-speed cutting on thinner materials, speed slows for thicker sections to maintain cut quality and precision.

4. Brass and Copper:

• 1-4 mm thickness: 12-40 m/min
• 5-10 mm thickness: 1.5-16 m/min
• Explanation: Copper and brass have high reflectivity, reducing the cutting speed compared to carbon steel or stainless steel. As a result, cutting speeds are slower but still efficient for medium-thickness materials.

The cutting speed of the 15KW laser cutting machine is highly efficient, achieving fast cutting speeds for various materials while maintaining exceptional cutting quality and precision, particularly for thicker metals.

The power consumption of a 15KW laser cutting machine can be broken down based on its key components. Here’s a detailed breakdown of the estimated power usage:

• Laser Generator: Although the machine is rated for 15KW cutting power, the laser generator itself consumes more electricity. A typical fiber laser generator for a 15KW laser cutting machine consumes around 36,000W to deliver the required output.
• Chiller: The chiller, responsible for cooling the laser source and other components, typically consumes between 14,000W and 16,000W, depending on the cooling needs and the machine’s design.
• Driver Power: The driver system, which powers the movement of the machine’s axes (X, Y, Z), consumes between 4,600W and 5,000W, depending on the complexity and size of the machine.
• Air Compressor: The air compressor provides the necessary compressed air or assist gas for the cutting process and consumes around 3,000W.
• Total Power Consumption: When you add up the power consumption of all components, the total estimated power consumption of a 15KW laser cutting machine is approximately 58,600W to 60,000W.

This means the machine typically consumes between 58.6 kW and 60 kW of electricity during operation, depending on the specific model, system configuration, and operating conditions. The 15KW laser cutting machine requires higher overall power consumption than its nominal cutting power due to the additional systems for cooling, movement, and air compression. This breakdown will help you understand the energy requirements for operating the machine and ensure your facility is prepared with the necessary power supply.

Yes, a 15KW laser cutting machine can often be customized to meet specific requirements based on the needs of the user or the industry. Customization options typically focus on various aspects of the machine’s configuration, capabilities, and additional features. Here are some common ways in which a 15KW laser cutting machine can be customized:

1. Cutting Head Configuration:

• Automatic Nozzle Changer: Some machines allow for automatic nozzle switching, which can be useful for cutting different materials or thicknesses without manual intervention.
• Fiber Laser Source Options: Depending on the type of laser (e.g., fiber, CO2), you can select the most appropriate type of laser for your materials and desired results.
• High-Precision Cutting Head: For industries requiring extreme precision, a specialized high-precision cutting head can be installed.

2. Additional Automation:

• Automatic Loading and Unloading Systems: To streamline production and improve throughput, automated material handling systems can be added.
• Robot Integration: Integration with robotic arms for loading/unloading or complex cutting tasks can enhance flexibility and automation.
• Material Storage Racks: Custom racks for material storage and automatic feed can be tailored to fit the workflow of your production process.

3. Software and Control Systems:

• Custom Software Packages: Some manufacturers offer the option to install specialized software tailored for specific industries or cutting applications, improving overall workflow management.
• Remote Control and Monitoring: Machines can be equipped with remote control features, allowing operators to monitor and adjust settings from outside the cutting area.

4. Machine Size and Bed Configuration:

• Custom Table Size: The size of the cutting table can be customized to handle larger or smaller materials, depending on the parts being produced.
• Multi-Zone Cutting Tables: Some machines are designed with multi-zone configurations that allow for the simultaneous cutting of multiple parts, improving efficiency.

5. Cooling and Ventilation:

• Customized Cooling Systems: Depending on the working environment and operational requirements, a tailored cooling system may be installed for better heat management.
• Exhaust and Fume Extraction: Additional ventilation or filtration systems can be customized for applications that produce significant smoke or fumes.

The 15KW laser cutting machine can be highly customizable, allowing manufacturers to tailor it to their specific operational needs and production goals. These customizations can improve efficiency, precision, and automation, ensuring the machine is optimized for the desired cutting tasks. Always consult with the manufacturer to discuss the customization options available for your particular requirements.

The cutting accuracy of a 15KW laser cutting machine is exceptionally high, making it well-suited for precision applications that require detailed, high-quality cuts. The machine’s key components, including the laser source, cutting head, machine structure, and control systems, all contribute to its impressive accuracy. Here’s a breakdown of the typical cutting accuracy:

• Positioning Accuracy: Positioning accuracy is typically within ±0.05mm, allowing the machine to precisely position the laser head across the cutting area, even on large sheets. This ensures that the machine can perform complex cuts with high precision.
• Repetition Accuracy: Repetition accuracy, which refers to the machine’s ability to repeat the same cut multiple times with minimal variation, is typically within ±0.02mm. This level of accuracy ensures consistent results over long production runs.
• Cut Quality: The kerf width (cut width) of a 15KW laser cutting machine generally ranges from 0.1mm to 0.3mm, depending on the material and cutting parameters. This fine kerf width results in clean, sharp cuts with minimal heat-affected zones (HAZ), making it suitable for intricate designs and detailed profiles.
• Dimensional Accuracy: The dimensional accuracy of cuts, including internal holes and profiles, is typically within ±0.1mm. This is crucial for parts that require high precision, such as those in the aerospace, automotive, and electronics industries.
• Edge Quality: Edge quality is excellent, with minimal burr formation and smooth, polished finishes. This contributes to the overall precision, especially when working with thin to medium-thick materials.

The 15KW laser cutting machine offers a cutting accuracy of ±0.05mm to ±0.1mm, along with exceptional edge quality, making it ideal for industries that require high-precision cuts, such as aerospace, automotive, electronics, and medical device manufacturing.

Our laser cutting machine is backed by a comprehensive warranty designed to give you peace of mind and protect your investment:

• 3-Year Warranty for the Entire Machine: This full warranty covers any defects or malfunctions in the machine as a whole, ensuring reliable performance and longevity over time.
• 2-Year Warranty for the Laser Generator: The laser generator, a critical component of the machine, is covered for two years. This warranty assures that any issues related to the laser generator will be addressed, minimizing downtime and maintaining cutting quality.
• 1.5-Year Warranty for Core Components: Key components essential for optimal machine operation are covered for 1.5 years. This includes parts that may experience wear and tear with regular use, ensuring you have support for the most vital parts of the machine.

Please note that this warranty excludes damage resulting from improper use, mishandling, or other artificial causes.
