AKJ-F3 Laser Cutting Machine

Whatsapp Envelope Phone-alt Zalo
Previous
Next

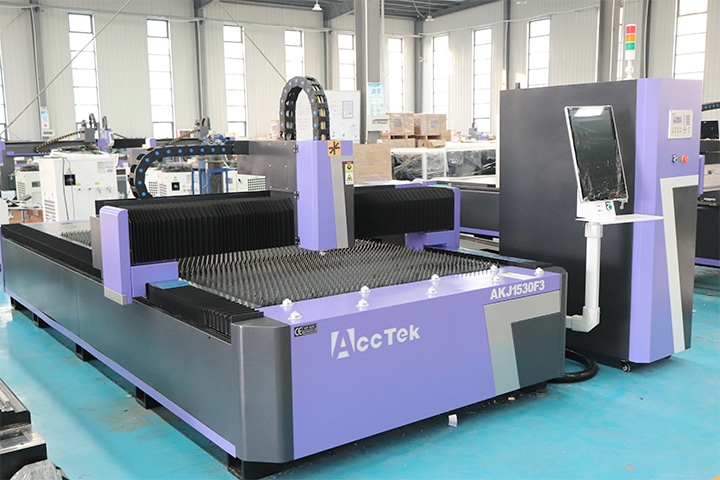

AKJ-F3 Laser Cutting Machine
(4 customer reviews)

$19,300.00 – $168,000.00

Send Email
Submit Form
WhatsApp
Table of Contents

Product introduction

AKJ-F3 laser cutting machine is a single-cutting worktable heavy-duty fiber laser cutting machine. The machine adopts a Raytools laser head and Yaskawa servo motor and can be equipped with a 1kw-12kw fiber laser to ensure high precision and high speed of laser cutting. The body adopts a heavy-duty structure, which can effectively prevent the deformation of the body. The heavy-duty fiber laser cutting machine can choose a variety of cutting areas: 1300 mm*2500 mm, 1500 mm*3000 mm, 1500 mm*4500 m, 2000 mm*4000 mm, and 2500 mm*6000 mm. It can also customize the cutting area according to customer requirements.
AccTek has 10 years of experience in laser-cutting machine production and is committed to providing professional laser solutions to global customers. As a professional manufacturer of fiber laser cutting machines, we have designed fiber laser cutting machines with different powers and models to meet the needs of different customers. AccTek implements a strict assembly process and world-class branded parts to ensure high cutting accuracy and powerful cutting ability, thus maximizing the productivity and profitability of sheet metal fabricators.

Product Configuration

Aviation Aluminum Beam

High Aviation Aluminum Beam

The beam is manufactured according to the aerospace standard. Compared with the steel beam, the weight is greatly reduced, the load of the servo motor is reduced, and the inertia is reduced. Taller beams allow for cutting thicker sheets while still maintaining optimum focus, and wider beams can also be used. After aging treatment, the beam has the characteristics of lightweight, high strength, and high running precision. The lightweight beam can ensure the fast operation of the equipment, improve the processing efficiency, and ensure the processing quality at the same time.

Tube Welding Bed

Tube Welding Bed

The internal structure of the bed is welded by multiple rectangular tubes, and there are reinforced rectangular tubes inside the bed to enhance the strength and stability of the body. The solid body structure not only increases the stability of the guide rail but also effectively prevents the deformation of the body. The service life of the body is as long as 25 years.

Raycus Laser Generator

Professional Laser Generator

The laser source used by the machine is a professional fiber laser generator, which is famous for its excellent beam quality, energy efficiency, and long service life. The fiber laser generator is housed in a rugged housing that provides stable and reliable operation even in harsh industrial environments.

Cypcut Laser Cutting Software

Professional Sheet Cutting System

Adopt the Cypcut 2000C laser cutting system, which is simple, economical, practical, and convenient for human-computer interaction. The cutting system has a rich built-in fiber laser cutting process and parameters and supports advanced functions such as workpiece edge finding, autofocus control, and breakpoint positioning. The cutting system is highly integrated and intelligent, integrating file reading, design, output, and processing control.

Cypcut Operation Interface

Operation Screen

The operation screen adopts a vertical screen design, which is different from the traditional horizontal screen display, with fast response speed, higher contrast, wider field of view, low power consumption, and high resolution. In addition, the operating screen features high brightness and low reflectivity, as well as a durable solid glass panel.

Yaskawa Servo Motor

Transmission And Precision

The equipment has a Japanese Yaskawa servo motor, Hiwin guide rail, and French Modoli reducer, which can realize high-precision, high-speed, and low-noise machine operation while ensuring smooth movement. The equipment has strong anti-interference and anti-overload capabilities to ensure that the equipment can operate for a long time and with high precision.

Raytools Laser Cutting Head

Raytools Laser Cutting Head

No Manual Focus Required: The software automatically adjusts the focusing lens to realize automatic perforation and cutting of plates with different thicknesses. Autofocus lenses are ten times faster than manual focus.
Wider Adjustment Range: Adjustment range -10mm~+10mm, precision 0.01mm, suitable for different types of 0~20mm plates.
Long Lasting: The collimating mirror and the focusing mirror are equipped with water-cooling fins, which can reduce the laser cutting head’s temperature and improve the laser cutting head’s service life.

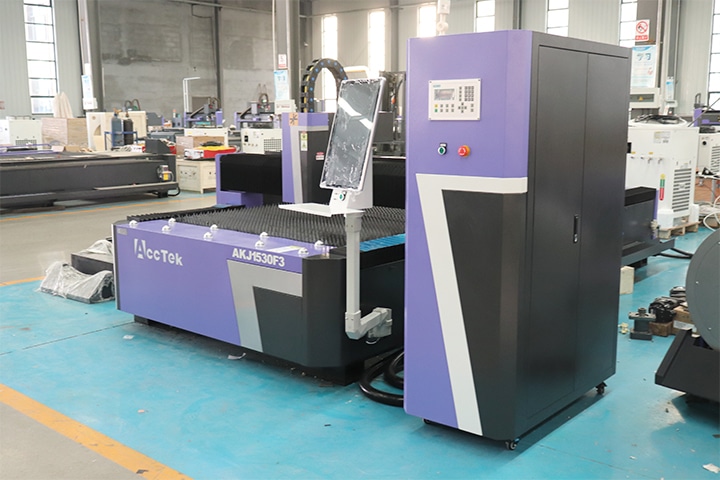

Independent Control Cabinet

Independent Control Cabinet

Dust-Proof Design: All electrical components and laser sources are built in an independent control cabinet, with a dust-proof design to prolong the service life of electrical components.
Automatic Thermostat: The control cabinet is equipped with an air conditioner and automatic constant temperature. This can prevent damage to components caused by overheating in summer.

Optional Configuration

Rotation Axis

Rotation Axis

The machine can increase the rotation axis according to customer requirements to realize the pipe-cutting function so that the machine can not only cut plates but also cut and process pipes (square pipes, round pipes). The rotating axis is designed with double pneumatic chucks, which can cut pipes with a diameter of 20-300mm.

Fully Enclosed Protective Cover

Fully Enclosed Protective Cover

It can be equipped with a fully enclosed laser shield and a dust recovery and purification system to reduce light pollution and smoke pollution caused by laser cutting during equipment operation. The observation window adopts European CE standard laser protective glass to reduce the damage to eyes caused by laser cutting.

Exchange Worktable

Exchange Worktable

The cutting worktable can choose the design of the upper and lower double exchange worktable. After cutting the workpiece on one worktable, it will automatically switch to the second worktable for cutting. The inverter is responsible for controlling the exchanging motor for the exchange workbench, and the machine can complete the worktable exchange within 15s at the fastest.

Product Parameters

Model AKJ-1325F3 AKJ-1530F3 AKJ-1545F3 AKJ-2040F3 AKJ-2560F3
Cutting Range 1300*2500mm 1500*3000mm 1500*4500mm 2000*4000mm 2500*6000mm
Laser Type Fiber Laser
Laser Power 1500-40000W
Laser Generator Raycus, Max, JPT, IPG
Transmission System Gantry Double Drive Structure
Maximum Moving Speed 100m/min
Maximum Acceleration 1.0G
Positioning Accuracy ±0.01mm
Repeat Positioning Accuracy ±0.03mm

Product Features

  • The fuselage adopts a gantry structure, and the beam is integrally cast, which has higher rigidity, stability, and shock resistance.
  • The high-performance laser generator and Au3tech cutting system with stable operation ensure the best cutting effect.
  • The machine has a complete cooling system, lubrication system, and dust removal system to ensure stable, efficient, and long-lasting operation of the machine.
  • The laser head is automatically adjusted to keep the focal length constant so that the cutting quality is more stable.
  • Professional CAD/CAM automatic programming software and automatic nesting software can help save raw materials to the greatest extent.

Product Advantages

High Efficiency

Adopt high-speed digital motion control of a German technology system, especially suitable for high-speed and high-precision laser cutting.

Narrow Slit

The slit of the fiber laser cutting machine is very narrow, the lowest can reach 0.05mm, which is very suitable for the high-efficiency processing of precision parts.

Automatic Lubrication

The automatic mechanical lubrication system can lubricate the linear guide rail nearly 500 times per minute to ensure the high-precision operation of the laser cutting machine.

Stable Operation

The gantry structure with synchronous bilateral rack and pinion transmission and high-strength aluminum beams are adopted to improve the stability of the equipment.

Low Energy Consumption

The photoelectric conversion efficiency of the laser generator is as high as 25-30%, which can effectively save energy use.

Long Service Life

The stable cutting table has a long service life and can be used for 25 years without deformation.

Good Cutting Effect

The cutting surface is smooth, without burrs, and does not require secondary processing by workers, saving time and effort.

Low Maintenance Cost

The fiber laser cutting machine does not require a lens, which greatly reduces maintenance costs. The life of key components can reach 100,000 hours, and the performance is stable and reliable.

Product Application

The AKJ-F3 laser cutting machine is the most commonly used laser cutting machine model, widely used in electronics, electrical, mechanical hardware, new energy, packaging, solar energy, LED, automobile, and other industries. The fiber laser cutting machine is used to cut various metal materials of different materials, such as stainless steel, carbon steel, galvanized sheet, electrolytic sheet, brass, aluminum, various alloy sheets, rare metals, etc.

Cutting Thickness Reference

Material Type 1000W 1500W 2000W 3000W 4000W 6000W 8000W 12000W 15000W 20000W 30000W 40000W
Carbon Steel (O2) 1-10mm 1-14mm 1-16mm 1-20mm 1-20mm 1-25mm 1-30mm 1-40mm 1-50mm 1-60mm 1-70mm 1-80mm
Carbon Steel (AIR) / / 1-3mm 1-3mm 1-5mm 1-6mm 1-10mm 1-14mm 1-16mm 1-20mm 1-25mm 1-40mm
Carbon Steel (N2) / / 1-3mm 1-3mm 1-6mm 1-8mm 1-10mm 1-14mm 1-16mm 1-20mm 1-25mm 1-30mm
Stainless Steel (N2) 1-5mm 1-6mm 1-8mm 1-12mm 1-16mm 1-20mm 1-30mm 1-40mm 1-50mm 1-100mm 1-120mm 1-150mm
Stainless Steel (AIR) 1-5mm 1-6mm 1-8mm 1-12mm 1-12mm 1-16mm 1-20mm 1-25mm 1-50mm 1-60mm 1-70mm 1-100mm
Aluminum Alloy (N2) 1-3mm 1-6mm 1-8mm 1-12mm 1-12mm 1-16mm 1-30mm 1-40mm 1-50mm 1-70mm 1-80mm 1-100mm
Aluminum Alloy (AIR) 1-3mm 1-6mm 1-8mm 1-8mm 1-8mm 1-12mm 1-20mm 1-14mm 1-18mm 1-40mm 1-50mm 1-60mm
Brass (N2) / / 1-4mm 1-6mm 1-6mm 1-8mm 1-12mm 1-14mm 1-16mm 1-16mm 1-20mm 1-20mm
Copper (O2) / / 1-2mm 1-3mm 1-3mm 1-5mm 1-6mm 1-10mm 1-12mm 1-14mm 1-16mm 1-18mm

Laser Cutting Samples

The AKJ-F3 laser cutting machines can cut all types of metals, from mild steel to stainless steel and non-ferrous metals. However, some highly reflective metals, such as aluminum and copper, are more difficult to cut. The maximum thickness of metal a laser can cut is determined by the laser source. Theoretically, the greater the laser power, the greater the thickness that can be cut. In addition, the expertise of the machine operator also affects the thickness of the laser cut.
Fiber Laser Cutting Samples
Fiber Laser Cutting Samples
Fiber Laser Cutting Samples
Fiber Laser Cutting Samples

Frequently Asked Questions

Yes, the above price is the FOB price for a laser cutting machine with a working area of 1500×3000mm. However, for machines with 30000W and 40000W power options, the FOB price applies to a larger working area of 2000×4000mm. This distinction is due to the specific requirements and configurations associated with higher-power machines, which generally require a larger cutting area. Please let us know if you have further questions or need clarification on pricing for different power levels or working area configurations.

The AKJ-F3 laser cutting machine offers three power options to meet different cutting needs: 1500W, 2000W, 3000W, 4000W, 6000W, 12000W, 20000W, 30000W, and 40000W. These options allow flexibility for various materials and thicknesses, depending on your production requirements.

The laser cutting machine is versatile and capable of cutting a wide range of metal materials, making it suitable for various applications. It can effectively cut:

  • Carbon Steel: Ideal for structural applications, machinery parts, and automotive components.
  • Stainless Steel: Perfect for high-precision cuts needed in industries like medical equipment, food processing, and architectural projects.
  • Aluminum: Suitable for aerospace components, decorative items, and electrical enclosures due to its lightweight yet durable properties.
  • Copper: Commonly used in electrical and plumbing industries for conductive components.
  • Brass: Often utilized in artistic, decorative, and industrial applications, as it allows for intricate, high-quality cuts.

These material options make the machine highly adaptable for diverse industries, including metal fabrication, automotive, aerospace, electronics, and construction. If you have specific thickness requirements for any of these materials, we can provide further details on cutting capabilities and power settings.

Our laser cutting machine package includes comprehensive technical support options designed to ensure smooth operation and help you maximize machine efficiency. We offer:

  • Online Technical Support: Our expert team is available remotely to assist you with any technical inquiries, troubleshooting, or guidance on machine setup and operation. This service is provided free of charge and can be accessed through various channels, including phone, email, or live chat.
  • On-Site Training (Paid Option): For customers who prefer in-depth, hands-on training, we provide an optional on-site support service. A skilled technician can visit your facility to provide customized training for your team, covering everything from machine setup to advanced operation techniques and maintenance practices. This service is ideal for teams new to laser cutting technology or for complex applications requiring detailed instruction.

Both support options are aimed at helping you achieve the best possible results with your machine. Please let us know if you’d like further details or if you’re interested in arranging on-site training.

Our laser cutting machine is backed by a comprehensive warranty designed to give you peace of mind and protect your investment:

  • 3-Year Warranty for the Entire Machine: This full warranty covers any defects or malfunctions in the machine as a whole, ensuring reliable performance and longevity over time.
  • 2-Year Warranty for the Laser Generator: The laser generator, a critical component of the machine, is covered for two years. This warranty assures that any issues related to the laser generator will be addressed, minimizing downtime and maintaining cutting quality.
  • 5-Year Warranty for Core Components: Key components essential for optimal machine operation are covered for 1.5 years. This includes parts that may experience wear and tear with regular use, ensuring you have support for the most vital parts of the machine.

Please note that this warranty excludes damage resulting from improper use, mishandling, or other artificial causes.

Our laser-cutting machine is certified with internationally recognized standards to ensure quality, safety, and compliance with industry requirements.

  • CE Certification: The CE mark is a mandatory certification for products sold within the European Economic Area (EEA). This certification confirms that our laser-cutting machine meets the health, safety, and environmental protection standards required by the EEA. It ensures that the machine is built and tested in compliance with European regulations, providing users with a high level of safety and reliability.
  • FDA Certification: For the U.S. market, our machine has FDA certification, verifying that it meets the standards set by the Food and Drug Administration for laser-emitting devices. This certification ensures the machine complies with laser safety regulations, providing users with peace of mind that the machine is safe to operate and meets the strict requirements set for laser equipment in the U.S.

If additional certifications are required for specific regions or industries, please let us know, and we can provide further information.

Yes, all our laser cutting machines are equipped with an auto-focus feature to enhance cutting precision and ease of operation.
The auto-focus capability automatically adjusts the focal distance of the laser beam based on the material thickness and type. This feature is especially beneficial for users who work with various materials or need to switch between different thicknesses frequently. By automatically optimizing the focus, the machine ensures consistent, high-quality cuts without the need for manual adjustments, which saves time and minimizes errors.
Additionally, the auto-focus function enhances cutting efficiency, allowing for faster processing speeds and reducing setup time. This feature is ideal for both intricate designs and high-volume production, ensuring precise results across all types of materials. If you have specific applications in mind, we would be happy to discuss how the auto-focus feature can improve your workflow.

Our laser-cutting machine system supports a variety of file formats, including DXF, AI, PLT, SVG, PDF, and DWG. These formats ensure compatibility with popular design and CAD software, making it easy to import and work with detailed drawings, vector designs, and technical files. If you have any additional format requirements, feel free to let us know, and we can verify compatibility.

Why Choose AccTek Laser

Productivity

Unparalleled Expertise

With years of experience in laser cutting technology, we have honed our expertise to provide cutting-edge solutions tailored to your unique needs. Our team of skilled engineers and technicians has the in-depth knowledge to ensure you get the perfect laser-cutting machine for your specific application.

Quality

Comprehensive Support And Service

At AccTek Laser, we build strong relationships with our clients. Our dedicated support team provides prompt assistance and after-sales service to keep your laser-cutting machine running at its best for years to come. Your satisfaction is our top priority and we will help you every step of the way.

Reliability

Strict Quality Control

Quality is the cornerstone of our manufacturing process. Every laser-cutting machine is rigorously tested and adheres to strict quality control standards, ensuring that the product you receive meets the highest industry benchmarks. Our dedication to quality ensures you get a machine that performs consistently and delivers perfect cuts every time.

Cost-Effective Solution

Cost-Effective Solution

We understand the importance of cost efficiency in today’s competitive landscape. Our laser-cutting machines can provide excellent value for your investment, minimizing downtime and reducing operating costs while maximizing productivity and efficiency.

Customer Reviews

4 reviews for AKJ-F3 Laser Cutting Machine

  1. Ahmed –

    Consistent performance and ease of operation make this fiber laser cutting machine a standout choice. It’s reliable, efficient, and produces clean cuts consistently.

  2. Sofia –

    This fiber laser machine is outstanding. It’s versatile, efficient, and has significantly improved our manufacturing capabilities.

  3. Viktoria –

    Dependable and precise, this fiber laser cutting machine has become an essential part of our workshop. It’s efficient, reliable, and delivers consistent results.

  4. Maryam –

    Impressed with the cutting quality and speed of this fiber laser cutting machine. It’s a valuable investment that has enhanced our productivity.
