CO2 Laser Cutting Machine With Automatic Feeding Device

Previous
Next
CO2 Laser Cutting Machine With Automatic Feeding Device
(4 customer reviews)

$5,200.00

Model: AKJ
Working Area: 600*400mm, 900*600mm, 1300*900mm, 1600*1000mm, 1300*2500mm, 1500*3000mm
Guide Rail: HIWIN
Laser Generator: Reci
Laser Power Range: 80-300W
Control Software: RDC6445 Ruida
Working Table: Knife Table, Honeycomb Table
Min Line Width: ≤0.15mm
Position Accuracy: 0.01mm
Repetition Accuracy: 0.02mm
Send Email
Submit Form
Download
Table of Contents

Product introduction

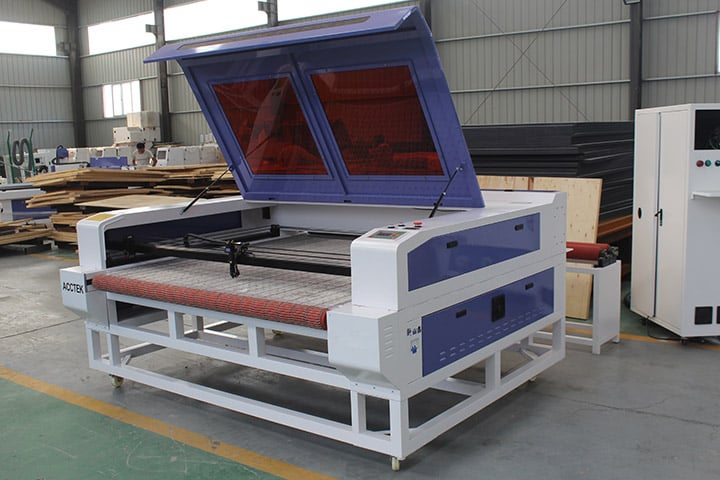

The CO2 laser cutting machine with an automatic feeding device is a kind of laser cutting machine for cutting different materials. It is equipped with an automatic feeding device so that the material is automatically fed into the machine, and then cut according to the specifications required by the user. This type of machine is great for cutting complex shapes, as well as cutting large blocks of material quickly and accurately. The machine is easy to operate and can perform high-quality cutting quickly.
AccTek Laser has 10 years of experience in laser-cutting machine production and is committed to providing professional laser solutions to global customers. As a professional manufacturer of CO2 laser cutting machines, we have designed laser cutting machines with different powers and functions to meet the needs of different customers. AccTek Laser implements strict assembly processes and world-class brand parts to ensure high-quality CO2 laser-cutting machines for customers.

Product Configuration

Aluminum Strip Shape Worktable

Aluminum Strip Shape Worktable

The CO2 laser cutting machine is equipped with an aluminum strip-shape worktable, which can efficiently cut and process a variety of materials, including wood, plastic, fabric, paper, leather, and even metal. The worktable is also equipped with safety guards to help protect the user from any potential hazards.

RDC6445 Ruida Controller

RDC6445 Ruida Controller

The CO2 laser cutting machine is equipped with an aluminum strip-shaped worktable, which can efficiently cut and process a variety of materials, including wood, plastic, fabric, paper, leather, and even metal. The worktable is also equipped with safety guards to help protect the user from any potential hazards.

Reci CO2 Laser Tube

Reci CO2 Laser Tube

The Reci CO2 laser tube is a powerful laser generator capable of producing a high-power laser beam for engraving and cutting various materials. Known for its durability and accuracy, it is also relatively easy to operate and maintain.

CO2 Laser Head

CO2 Laser Head

The high-precision CO2 laser head is selected, and it has a red dot positioning function. The cutting head always follows the material and keeps the position of the cutting point unchanged. An air pipe is also installed on the laser head, and the air blown out will not only blow away the air but also cool the lens and the surface of the object.

Mirror And Lens

Mirror And Lens

The molybdenum-based lens imported from Singapore is used to make the light spot produced by the equipment smaller and the cutting ability stronger.
With 45° mirror adjustment. Three-point dimming screw, easier dimming.
Suitable for a variety of environments, high precision, and fast speed.

Hiwin Guide Rail

HIWIN Guide Rail

Using Taiwan HIWIN linear guide rail, the running speed is fast, the positioning accuracy is high, the time is longer, the engraving and cutting accuracy is improved, and the precise processing effect is ensured.

Stepper Motor

Stepper Motor

The stepper motor with strong power and reliable performance is selected to ensure the normal operation of the machine. Not only the price of the motor is cheap, but the performance also is good, no A/D conversion is required, and the digital pulse signal can be directly converted into angular displacement.

Shanghai Fulong Belt

Shanghai Fulong Belt

Adopt the Fulong brand nylon belt, which has high wear resistance, good stability, good torsion resistance, low elongation, and low noise.

Optional Configuration

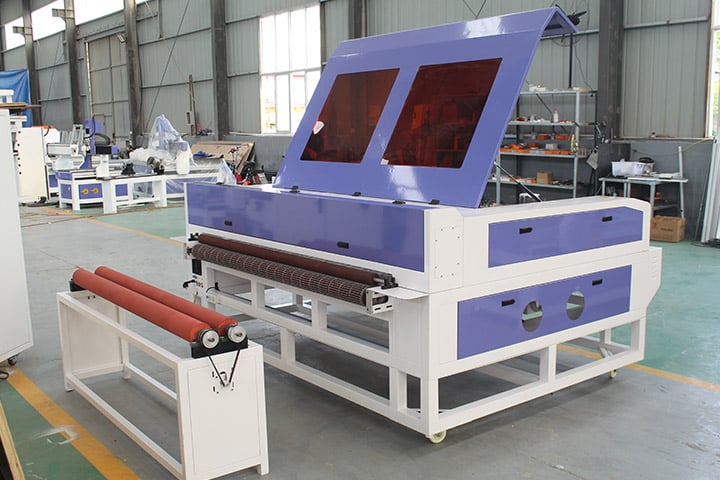

Automatic Feeding Device

Automatic Feeding Device

The automatic feeding device can automatically feed the material into the laser cutting machine, to achieve faster, more accurate, and more efficient laser cutting. It also ensures that the material is properly aligned and positioned before cutting. The unit is also equipped with safety features to prevent accidents and potential damage.

Industrial Water Chiller

Industrial Water Chiller

The CO2 laser cutting machine can be equipped with an industrial water cooler. The industrial water cooler ensures the heat dissipation of the core optical path components so that the CO2 laser cutting machine can provide consistent cutting quality. It can also increase welding output by reducing the downtime of CO2 laser-cutting machines.

Electric Lift Table

Electric Lift Table

The electric lifting table can be customized according to the requirements. It is mainly used to adjust the height of the material, to keep the most suitable distance between the cutting head and the surface of the material, and to ensure the cutting effect.

Rotary Axis Device

Rotary Axis Device

The rotary axis device can be selected according to requirements, which is used to clamp and rotate cylindrical objects to realize rotary cutting of materials. The device consists of a motor, a transmission shaft, and a chuck.

Honeycomb Worktable

Honeycomb Worktable

The honeycomb worktable is available upon request, which allows for better airflow and a more even cutting surface. The honeycomb design helps reduce noise and vibration during cutting.

Product Parameters

Model AKJ1390 AKJ1610
Working Area 1300*900mm 1600*1000mm
Laser Medium CO2
Working Table Auto-feeding flat table
Laser Power 80W, 90W, 100W, 130W, 150W, 180W, 200W, 280W, 300W
Power Supply 220V/50HZ, 110V/60HZ
Min Line Width ≤0.15mm
Position Accuracy 0.01mm
Repetition Accuracy 0.02mm
Cutting Speed 150mm/s
Working Environment 0-45℃
Operating Humidity 5-95%

Product Features

  • CO2 laser cutting machine can cut and engrave all kinds of non-metal, such as acrylic, two-color board, marble, wood, plywood, textile, leather, glass, paper, etc.
  • Widely used in craft gifts, souvenirs, Chinese paper-cutting, advertising signs, clothing, furniture, and many other industries.
  • The cutting and engraving speed is fast and the precision is high. The lifting platform, cellular platform, and rotary platform can be configured according to demand.
  • The working size of the machine can be selected according to the needs.
  • Fixed cabinet frame to improve rigidity.
  • The material can extend through the front and rear doors to allow the processing of larger workpieces.
  • Using ultra-fine precision cutting technology, it can process a wide range of materials, with smooth cutting edges and no burrs.
  • The interlayer is made of safety glass to ensure that no injuries will be caused during the operation of the equipment.
  • Exhaust, air suction, and blowing aid systems solve the problems that have plagued the laser equipment manufacturing industry for many years.
  • This machine adopts a USB port to transmit data, and the content capacity is larger.

Product Application

Elevate your manufacturing capabilities across industries with our CO2 laser cutting machine. Perfect for automotive, aerospace, electronics, and medical sectors, achieve precise cuts for components and parts. Seamlessly fabricate intricate signage for advertising, fashion intricate patterns in textiles, or create bespoke designs in woodworking. With unmatched precision and versatility, our CO2 laser cutting machine empowers your business to excel in every application.

Laser Cutting Samples

Unlock the power of precision with our CO2 laser cutting machine. Seamlessly cut through a variety of materials including acrylic, wood, leather, and more with unmatched accuracy and efficiency. From intricate designs to industrial-grade production, our advanced technology ensures flawless results. Elevate your craftsmanship and streamline your workflow with the ultimate cutting solution tailored to your material needs.
CO2 Laser Cutting Samples
CO2 Laser Cutting Samples
CO2 Laser Cutting Samples
CO2 Laser Cutting Samples

Why Choose AccTek Laser

Productivity

Unparalleled Expertise

With years of experience in laser cutting technology, we have honed our expertise to provide cutting-edge solutions tailored to your unique needs. Our team of skilled engineers and technicians has the in-depth knowledge to ensure you get the perfect laser-cutting machine for your specific application.

Quality

Comprehensive Support And Service

At AccTek Laser, we build strong relationships with our clients. Our dedicated support team provides prompt assistance and after-sales service to keep your laser-cutting machine running at its best for years to come. Your satisfaction is our top priority and we will help you every step of the way.

Reliability

Strict Quality Control

Quality is the cornerstone of our manufacturing process. Every laser-cutting machine is rigorously tested and adheres to strict quality control standards, ensuring that the product you receive meets the highest industry benchmarks. Our dedication to quality ensures you get a machine that performs consistently and delivers perfect cuts every time.

Cost-Effective Solution

Cost-Effective Solution

We understand the importance of cost efficiency in today’s competitive landscape. Our laser-cutting machines can provide excellent value for your investment, minimizing downtime and reducing operating costs while maximizing productivity and efficiency.
