Double Beam CO2 And Fiber Laser Cutting Machine

Whatsapp Envelope Phone-alt Zalo
Previous
Next
Double Beam CO2 And Fiber Laser Cutting Machine
(4 customer reviews)

$15,700.00

Brand: AccTek
Model: AKJ-F-2
Fiber Laser Power Range: 1500-3000W
CO2 Laser Power Range: 150-300W (Reci)
Laser Generator: Raycus, Max, BWT, JPT, IPG
Laser Head: Au3tech
Control Software: Au3tech
Servo Motor: Delta
After Sale: 3 Years
Lead Time: 15-17 Working Day
Send Email
Submit Form
WhatsApp
Table of Contents

Product introduction

The double-beam CO2 and fiber laser cutting machine is an advanced tool that combines the advantages of CO2 and fiber laser technology. This innovative machine combines two different types of lasers (CO2 lasers for processing non-metallic materials and fiber lasers for cutting metals) into one machine, giving manufacturers unrivaled versatility. The double-beam design allows two laser heads to operate simultaneously, resulting in faster processing and higher throughput.
AccTek Laser has 10 years of experience in laser cutting machine production and is committed to providing professional laser solutions to global customers. As a professional manufacturer of laser cutting machines, we have designed laser cutting machines with different powers and functions to meet the needs of different customers. AccTek Laser implements strict assembly processes and world-class brand parts to ensure high-quality laser-cutting machines for customers.

Product Configuration

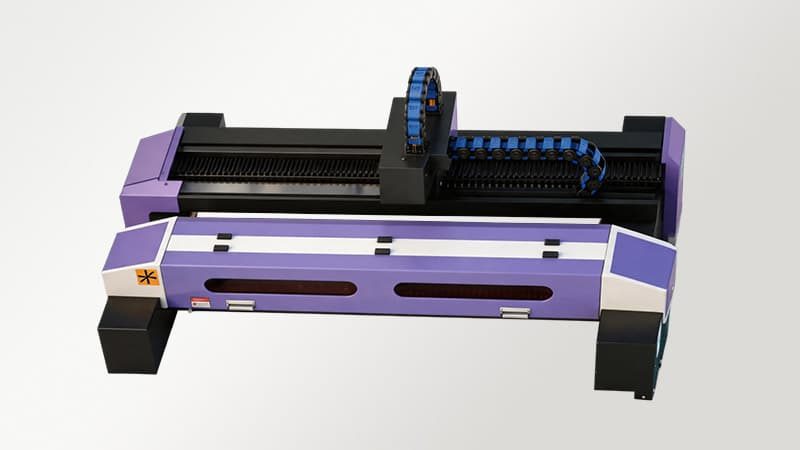

Double Beam Design

Double Beam Design

The machine adopts a double gantry design, a CO2 laser head is installed on one gantry, and a fiber laser head is installed on the other gantry. It helps increase efficiency, improve precision, and reduce material waste, making it an excellent choice for businesses looking to enhance their manufacturing processes.

Aviation Aluminum Beam

Aviation Aluminum Beam

The beam is manufactured according to the aerospace standard. Compared with the steel beam, the weight is greatly reduced, the load of the servo motor is reduced, and the inertia is reduced. After aging treatment, the beam has the characteristics of lightweight, high strength, and high running precision. The lightweight beam can ensure the fast operation of the equipment, improve the processing efficiency, and ensure the processing quality at the same time.

Tube Welding Bed

Tube Welding Bed

The internal structure of the bed is welded by multiple rectangular tubes, and there are reinforced rectangular tubes inside the bed to enhance the strength and stability of the body. The solid body structure not only increases the stability of the guide rail but also effectively prevents the deformation of the body. The service life of the body is as long as 25 years.

Raycus Laser Generator

Professional Laser Generator

The laser source used by the machine is a professional fiber laser generator, which is famous for its excellent beam quality, energy efficiency, and long service life. The fiber laser generator is housed in a rugged housing that provides stable and reliable operation even in harsh industrial environments.

Reci CO2 Laser Tube

Reci CO2 Laser Tube

The Reci CO2 laser tube is a powerful laser generator capable of producing a high-power laser beam for engraving and cutting various materials. Known for its durability and accuracy, it is also relatively easy to operate and maintain.

Au3tech Cutting Head

Au3tech Cutting Head

The A200M sheet metal cutting head was designed by the German brand A-cutter in 2018 and is mainly used for flat cutting within 2000W. Stable and reliable, high precision, good quality, and long service life.

Delta Servo Motor

Delta Servo Motor

Our selection of Taiwan Delta servo motors can not only meet the high-precision positioning requirements of the laser cutting machine but also reduce maintenance and wiring costs for multi-function operations.

Hiwin Guide Rail

HIWIN Guide Rail

Using Taiwan HIWIN linear guide rail, the running speed is fast, the positioning accuracy is high, the time is longer, the engraving and cutting accuracy is improved, and the precise processing effect is ensured.

Au3tech SC2000 Laser Cutting Software

Au3tech Control System

Au3tech system is a powerful laser cutting control system designed to enhance the functionality of laser cutting machines. It offers a range of advanced features and benefits that increase user efficiency, accuracy, and overall performance.

Product Parameters

Model AKJ1325F-2 AKJ1530F-2
Cutting Range 1300*2500mm 1500*3000mm
Control System Au3tech
Laser Head Au3tech
Fiber Laser Power 1500-3000W
CO2 Laser Power 150-300W (Reci W6)
Max Cutting Speed 35m/min
Max Speed 50m/min
Min Line Width 0.1mm
Continuous Working Time 24 hours
Repeat Positioning Accuracy ±0.02mm

Product Features

  • The fuselage adopts a gantry structure, and the beam is integrally cast, which has higher rigidity, stability, and shock resistance.
  • The high-performance laser generator and Au3tech cutting system with stable operation ensure the best cutting effect.
  • The machine has a complete cooling system, lubrication system, and dust removal system to ensure stable, efficient, and long-lasting operation of the machine.
  • The laser head is automatically adjusted to keep the focal length constant so that the cutting quality is more stable.
  • Professional CAD/CAM automatic programming software and automatic nesting software can help save raw materials to the greatest extent.
  • The machine adopts a double gantry structure, which has the advantage that it can be equipped with two independent control systems to control the fiber laser and CO2 laser respectively.
  • The machine is used for cutting metal materials, and the CO2 laser cutting system is used for cutting and engraving non-metal materials. One machine can be used for multiple purposes, which is more cost-effective than buying two machines separately.

Product Advantages

High Efficiency

Adopt high-speed digital motion control of a German technology system, especially suitable for high-speed and high-precision laser cutting.

Narrow Slit

The slit of the fiber laser cutting machine is very narrow, the lowest can reach 0.05mm, which is very suitable for the high-efficiency processing of precision parts.

Automatic Lubrication

The automatic mechanical lubrication system can lubricate the linear guide rail nearly 500 times per minute to ensure the high-precision operation of the laser cutting machine.

Stable Operation

The gantry structure with synchronous bilateral rack and pinion transmission and high-strength aluminum beams are adopted to improve the stability of the equipment.

Low Energy Consumption

The photoelectric conversion efficiency of the laser generator is as high as 25-30%, which can effectively save energy use.

Long Service Life

The stable cutting table has a long service life and can be used for 25 years without deformation.

Good Cutting Effect

The cutting surface is smooth, without burrs, and does not require secondary processing by workers, saving time and effort.

Low Maintenance Cost

The fiber laser cutting machine does not require a lens, which greatly reduces maintenance costs. The life of key components can reach 100,000 hours, and the performance is stable and reliable.

Product Application

The double-beam CO2 and fiber laser cutting machines are widely used in automobiles, precision machinery, medical equipment, kitchen utensils, electronic appliances, advertising signs, elevators, electrical appliances, metal processing, and other industries.

Cutting Thickness Reference

Material Type 1000W 1500W 2000W 3000W 4000W 6000W 8000W 12000W
Carbon Steel (O2) 1-10mm 1-14mm 1-16mm 1-20mm 1-20mm 1-25mm 1-30mm >1-40mm
Carbon Steel (AIR) / / 1-3mm 1-3mm 1-5mm 1-6mm 1-10mm 1-14mm
Carbon Steel (N2) / / 1-3mm 1-3mm 1-6mm 1-8mm 1-10mm 1-18mm
Stainless Steel (N2) 1-5mm 1-6mm 1-8mm 1-12mm 1-16mm 1-20mm 1-30mm 1-40mm
Stainless Steel (AIR) 1-5mm 1-6mm 1-8mm 1-12mm 1-12mm 1-16mm 1-20mm 1-25mm
Aluminum Alloy (N2) 1-3mm 1-6mm 1-8mm 1-12mm 1-12mm 1-16mm 1-30mm 1-40mm
Aluminum Alloy (AIR) 1-3mm 1-6mm 1-8mm 1-8mm 1-8mm 1-12mm 1-20mm 1-30mm
Brass (N2) / / 1-4mm 1-6mm 1-6mm 1-8mm 1-12mm 1-14mm
Copper (O2) / / 1-2mm 1-3mm 1-3mm 1-5mm 1-6mm 1-10mm

Laser Cutting Samples

The double-beam CO2 and fiber laser cutting machines can be used for cutting and engraving metal and non-metal materials. It can be used not only for cutting thin metal sheets, such as stainless steel, carbon steel, aluminum alloy, galvanized sheet, etc. but also for cutting acrylic, wood, PVC, etc.
Fiber Laser Cutting Samples
Fiber Laser Cutting Samples
CO2 Laser Cutting Samples
CO2 Laser Cutting Samples

Why Choose AccTek Laser

Productivity

Unparalleled Expertise

With years of experience in laser cutting technology, we have honed our expertise to provide cutting-edge solutions tailored to your unique needs. Our team of skilled engineers and technicians has the in-depth knowledge to ensure you get the perfect laser-cutting machine for your specific application.

Quality

Comprehensive Support And Service

At AccTek Laser, we build strong relationships with our clients. Our dedicated support team provides prompt assistance and after-sales service to keep your laser-cutting machine running at its best for years to come. Your satisfaction is our top priority and we will help you every step of the way.

Reliability

Strict Quality Control

Quality is the cornerstone of our manufacturing process. Every laser-cutting machine is rigorously tested and adheres to strict quality control standards, ensuring that the product you receive meets the highest industry benchmarks. Our dedication to quality ensures you get a machine that performs consistently and delivers perfect cuts every time.

Cost-Effective Solution

Cost-Effective Solution

We understand the importance of cost efficiency in today’s competitive landscape. Our laser-cutting machines can provide excellent value for your investment, minimizing downtime and reducing operating costs while maximizing productivity and efficiency.

Customer Reviews

4 reviews for Double Beam CO2 And Fiber Laser Cutting Machine

  1. Mohammed –

    The mixed laser cutter achieves consistent cutting quality across various materials, ensuring client satisfaction.

  2. Nalin –

    With the mixed laser cutter, we achieve superior results on a wide range of materials, optimizing our production process.

  3. Marija –

    The mixed laser cutter’s intuitive interface and advanced features make it easy to achieve precise cutting results, improving our workflow.

  4. Pierre –

    Seamless integration of fiber and CO2 technologies in the mixed laser cutter ensures optimal cutting results on diverse materials.
