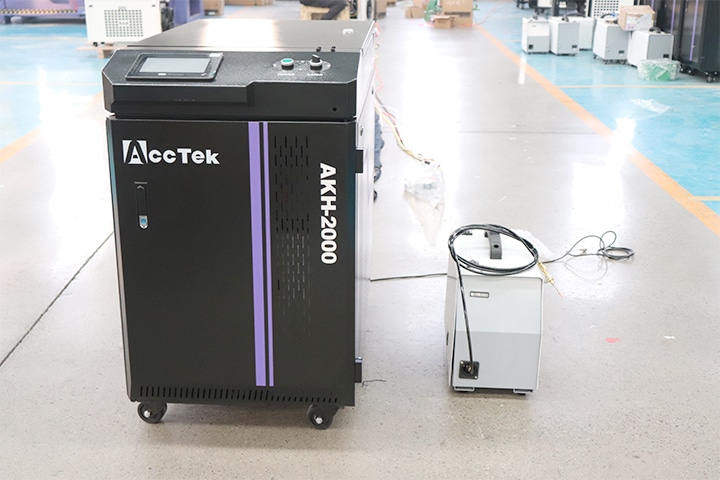

Double Wobble Laser Welding Machine

Previous
Next
Double Wobble Laser Welding Machine
(4 customer reviews)

$4,600.00

Brand: AccTek
Model: AKH
Laser Power: 1500-3000W
Laser Genertor: Raycus, JPT, Max, IPG, BWT
Range of Adjustable Power: 1-100%
Laser Wavelength: 1080nm
Fiber Length: Standard 10m, maximum support 20m
After Sale: 3 Years
Lead Time: 15-17 Working Days
Send Email
WhatsApp
Online Chat
Table of Contents

Product introduction

The double wobble laser welding machine is a high-configuration handheld laser welding machine, including CW/pulse output mode. It can be used to weld stainless steel, iron, galvanized steel, and aluminum, and can completely change the pattern of traditional welding methods. The hand-held double wobble laser head is light in shape and economical in design, which provides great convenience for the laser welding process. In addition, we adopt a high-speed digital motor wobble design, which can switch freely between multiple welding modes.
AccTek Laser has 10 years of experience in laser welding machine production and is committed to providing professional laser solutions for global customers. As a professional manufacturer of laser welding machines, we have designed fiber laser welding machines with different powers and functions to meet the needs of different customers. AccTek Laser implements strict assembly processes and world-class brand parts to ensure high-quality laser welding machines for customers.

Product Configuration

Laser Generator

Famous Fiber Laser Generator

Using well-known brand laser generators (Raycus, JPT, Max, IPG), a high photoelectric conversion rate ensures the laser power and makes the welding effect better. AccTek Laser can design different configurations to meet customer needs.

Control Panel

Interactive Touch Screen Control System

AccTek Laser provides high-performance, intuitive, and easy-to-use operating systems. It expands the tolerance range and weld width of machined parts and provides better weld formation results. The operating system supports Chinese, English, Korean, Russian, Vietnamese, and other languages.

Industrial Water Chiller

Industrial Water Chiller

The industrial water cooler ensures the heat dissipation of the core optical path components, allowing the laser welding machine to provide consistent welding quality and helping to improve the overall quality of the weld itself. It can also increase welding output by reducing the downtime of fiber laser welding machines. In addition, an excellent industrial water cooler can also prolong the service life of the laser welding machine.

Wobble Handheld Laser Head

Wobble Handheld Laser Head

The wobble hand-held laser head is light in shape and economical in design, which provides great convenience for the laser welding process. In addition, we adopt a high-speed digital motor wobble design, which can switch freely between multiple welding modes.

Optional Configuration

Automatic Wire Feeder

Automatic Wire Feeder

When the gap between the welded metals is greater than 0.2 mm, the welding wire is required during welding. AccTek Laser can add an automatic wire feeder according to customer requirements, and adjust the wire feeding speed through the touch screen. The automatic wire feeder has high repeat wire feeding accuracy, which can avoid the disadvantages of unstable and low efficiency of manual wire feeding.

Product Parameters

Model AKH-1500 AKH-2000 AKH-3000
Laser Power 1500W 2000W 3000W
Range of Adjustable Power 1-100%
Laser Wavelength 1080nm
Way of Working Continuous/Modulation
Cooling Method Water Cooling
Power Demand AC220V±5%/50Hz
Working Environment Temperature 15~35℃
Working Environment Humidity < 70%(No Condensation)

Product Features

  • The operation is simple and easy to learn, and the weld seam is not deformed.
  • The laser output is stable, ensuring the consistency of the weld.
  • High power density after laser focusing.
  • The welding seam is smooth and beautiful, the welding workpiece will not be deformed, and the welding is firm without a subsequent grinding process, saving time and cost.
  • The 360-degree micro-welding without dead angle. After the laser beam is focused, a small spot can be obtained, which can be precisely positioned and used for the welding of small and small workpieces and can realize mass production.
  • The welding speed is fast and the operation is simple, which is 2-10 times faster than the traditional welding speed.
  • Long service life, providing a safer and more environmentally friendly welding method.

Product Advantages

  • The machine provides excellent precision and control over the welding process to precisely control laser beam parameters including power output, pulse duration, and frequency.
  • The fiber laser generator has high energy density, and compared with traditional welding technology, the welding speed is faster. Increased welding speeds mean higher productivity and shorter cycle times.
  • The machine can effectively weld a variety of materials, including metals (such as steel, aluminum, and copper) and some plastics.
  • The machine can be seamlessly integrated into automated production lines to increase efficiency and productivity.
  • The high welding speed and high efficiency of the machine reduce the labor cost and increase the output.
  • The machine’s precise control of laser parameters can ensure the consistency of welding penetration and fusion, resulting in high-quality welds with excellent strength and integrity.
  • The machine can work in complex and difficult-to-bottom areas and has high flexibility.

Product Application

The double wobble laser welding machines are widely used in kitchen cabinets, stair elevators, shelves, ovens, stainless steel doors, window guardrails, distribution boxes, medical equipment, communication equipment, battery manufacturing, craft gifts, home furnishing, and other industries.

Welding Thickness Reference

Laser Power 1000W 1500W 2000W 3000W
Carbon Steel 0.5-1.5mm 0.5-2mm 0.5-3mm 0.5-5mm
Stainless Steel 0.5-1.5mm 0.5-2mm 0.5-3mm 0.5-5mm
Brass 0.5-1mm 0.5-1.5mm 0.5-2mm 0.5-4mm
1-3 Series Aluminum Alloys 0.5-1.5mm 0.5-2mm 0.5-2mm 0.5-3mm
4-7 Series Aluminum Alloys 0.5mm 0.5-1mm 0.5-1.5mm 0.5-2mm
Copper / 0.5mm 0.5mm 0.5-1mm

Laser Welding Samples

The double wobble laser welding machine can be used for welding stainless steel, carbon steel, copper, aluminum, gold, chromium, silver, titanium, nickel, and other metals or alloys, and can also be used for welding between different materials, such as copper-brass, Titanium-molybdenum, titanium-gold, nickel-copper, etc.
Laser Welding Samples
Laser Welding Samples
Laser Welding Samples
Laser Welding Samples

Why Choose AccTek Laser

Factory Presets Ensure Optimal Welding

Unparalleled Expertise

With years of experience in laser welding technology, we have honed our expertise to provide cutting-edge solutions tailored to your unique needs. Our team of skilled engineers and technicians has the in-depth knowledge to ensure you get the perfect laser welding machine for your specific application.

Compact And Safe

Comprehensive Support And Service

At AccTek Laser, we build strong relationships with our clients. Our dedicated support team provides prompt assistance and after-sales service to keep your laser welding machine running at its best for years to come. Your satisfaction is our top priority and we will help you every step of the way.

Quick And Easy Setup

Strict Quality Control

Quality is the cornerstone of our manufacturing process. Every laser welding machine is rigorously tested and adhered to strict quality control standards, ensuring that the product you receive meets the highest industry benchmarks. Our dedication to quality ensures you get a machine that performs consistently and delivers perfect welds every time.

Operator Safety Features

Cost-Effective Solution

We understand the importance of cost efficiency in today’s competitive landscape. Our laser welding machines can provide excellent value for your investment, minimizing downtime and reducing operating costs while maximizing productivity and efficiency.
