Pulse Laser Cleaning Machine

Pulse Laser Cleaning Machine
(4 customer reviews)

$6,300.00$32,100.00

Table of Contents

Product introduction

The portable laser cleaning machine is a revolutionary tool designed to make cleaning a wide variety of materials easier and faster than ever before. The machine uses a powerful laser to easily remove dirt, rust, paint, and other contaminants from metal, plastic, and other surfaces. Lightweight, portable, and easy to use, this machine is the ideal solution for anyone who needs to clean hard-to-reach areas or surfaces that require a delicate touch.
AccTek has 10 years of experience in laser cleaning machine production and is committed to providing professional laser solutions for global customers. As a professional manufacturer of laser cleaning machines, we have designed laser cleaning machines with different powers and functions to meet the needs of different customers. AccTek implements strict assembly processes and world-class brand parts to ensure high-quality laser cleaning machines for customers.

Product Configuration

JPT Laser Generator

Famous Fiber Laser Generator

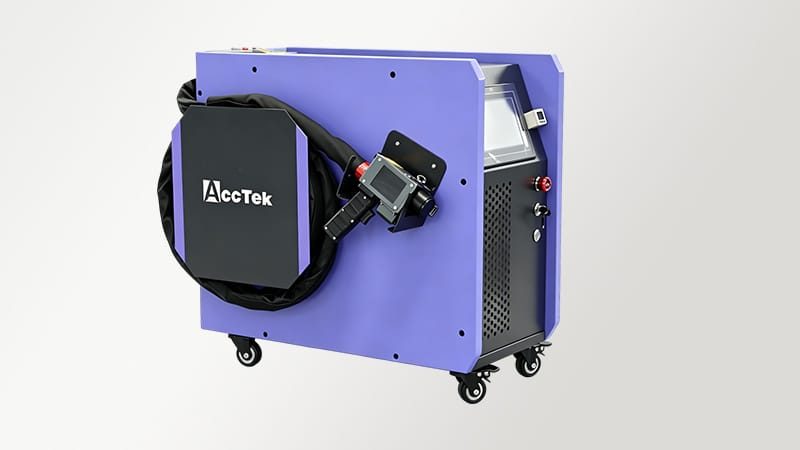

The whole machine adopts a portable integrated design, and the bottom is equipped with universal wheels, which are easy to move. The machine shell adopts one-piece injection molding, which is resistant to compression, drop, and wear. 3-10m fiber optic cable can realize long-distance cleaning.

Control Panel

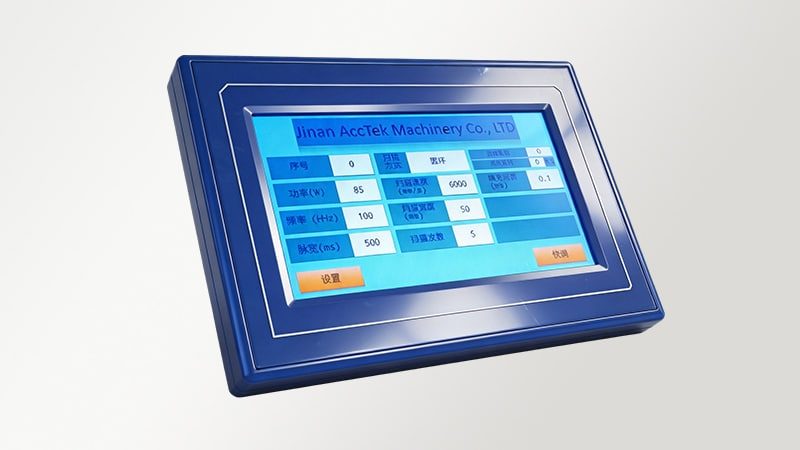

Interactive Touch Screen Control System

AccTek Laser provides high-performance, intuitive, and easy-to-use operating systems. It expands the tolerance range and weld width of machined parts and provides better weld formation results. The operating system supports Chinese, English, Korean, Russian, Vietnamese, and other languages.

Laser Cleaning Head

Laser Cleaning Head

The laser cleaning head is ergonomically designed, small in size, comfortable to hold, and easy to control and operate. The hand-held cleaning head is easy to hold can be used for a long time, and can be operated at any angle, making cleaning more convenient and flexible.

Product Parameters

Model AKQ-100 AKQ-200 AKQ-300 AKQ-500 AKQ-750 AKQ-1000
Laser Power 100W 200W 300W 500W 750W 1000W
Laser Type Fiber Laser
Pulse Formation Q-Switched (Quality Factor)
Output Range (If Adjustable) 0-100%
Cleaning Efficiency 12㎡/h
Scanning Width 10-80mm
Expected Focal Distance 160mm
Fiber Cable Length 3-10m
Cooling Type Air Cooling Air/Water Cooling Water Cooling

Product Features

  • Laser cleaning is a “green” cleaning method that does not need to use any chemicals or cleaning fluids. The cleaned waste is solid powder, small in size, easy to store, recyclable, and can easily solve the Environmental Pollution problems caused by chemical cleaning.
  • The traditional cleaning method is often contact cleaning. The surface of the object to be cleaned has mechanical force, and the surface of the object that will be damaged or the cleaning medium adheres to the surface of the object to be cleaned and cannot be removed, causing secondary pollution. The non-abrasive and non-contact laser cleaning solves these problems.
  • Laser cleaning can be transmitted through optical fiber, cooperate with robots to realize long-distance operation, and clean parts that are difficult to reach by traditional methods.
  • Laser cleaning can remove all kinds of pollutants on the surface of various materials, and achieve cleanliness that cannot be achieved by conventional cleaning. In addition, it can selectively clean the contaminants on the surface of the material without damaging the surface of the material.
  • High efficiency of laser cleaning, saving time and effort.

Product Advantages

  • No consumables, no chemical pollution, saving energy and electricity.
  • No contact, no friction, and no stress can protect the surface of brittle materials, and minimize damage to the substrate.
  • It can remove pollution particles below the nanometer level, and the cleanliness is high.
  • Optical fiber transmission can be moved and operated, precisely positioned for cleaning, and can also clean areas that are not easily accessible.
  • Synchronous cleaning and synchronous processing to achieve zero discharge during the cleaning process.
  • It can realize fast cleaning of heavy pollutants and high-speed cleaning of light pollutants.
  • Laser cleaning can solve problems that cannot be solved by traditional cleaning methods.
  • Wide range of applicable materials for laser cleaning.

Product Application

Experience the next evolution in industrial cleaning with our pulse laser cleaning machine. Engineered for precision and versatility, it’s the ultimate solution for industries spanning automotive, aerospace, electronics, and manufacturing. Say goodbye to harsh chemicals and labor-intensive methods and hello to precise, environmentally friendly solutions. Boost efficiency, reduce downtime, and achieve impeccable results with our advanced pulse laser cleaning machine.

Laser Cleaning Samples

Advanced pulse laser cleaning machines from AccTek Laser are designed to easily restore surfaces to perfect condition. Ideal for a variety of materials including metal alloys, ceramics, and stone, our innovative technology removes rust, paint, and contaminants with unparalleled precision. Say goodbye to tedious scrubbing and harsh chemicals, our laser solution offers a safe, efficient, and environmentally friendly cleaning alternative. Elevate your cleaning process with our cutting-edge laser technology.
Laser Cleaning Samples
Laser Cleaning Samples
Laser Cleaning Samples
Laser Cleaning Samples

Frequently Asked Questions

Yes, the price listed is the FOB (Free on Board) price. This means the price covers everything until the product is loaded onto the shipping vessel at the port. After that, the buyer handles all shipping, insurance, and import fees.

The machine offers a range of power options to suit different cleaning applications: 100W, 200W, 300W, 500W, 750W, and 1000W. The 100W and 200W models are ideal for lighter cleaning jobs, such as gentle rust or surface treatments. For more intensive cleaning tasks, you might consider the 300W or 500W options, which provide stronger cleaning capabilities. The 750W and 1000W options deliver the highest power levels, suitable for heavy-duty cleaning, removing tough coatings, or handling larger surface areas efficiently. With these choices, you can select the best power level to meet your specific cleaning needs.

The laser cleaning machine is highly versatile and can clean a wide range of materials. It’s ideal for metals such as steel, aluminum, copper, and brass, effectively removing rust, oxidation, paint, and other contaminants without damaging the base material. It’s also suitable for delicate surfaces like stainless steel, providing a non-abrasive cleaning method that preserves the material’s integrity.
Beyond metals, the laser cleaning machine can work on stone, removing dirt, grime, or paint layers from historical artifacts or statues. It can also clean ceramic surfaces and some types of plastics, depending on their heat sensitivity. This flexibility makes the machine valuable across industries, from manufacturing and automotive to restoration and conservation, where a precise, contactless cleaning process is required.

Our laser cleaning machine offers a variety of cleaning area options depending on the power level, allowing you to tailor the machine’s cleaning area to your specific needs:

  • For the 100W model, the standard cleaning area is 100x100mm, with optional configurations of 130x130mm and 150x150mm for more flexibility.
  • The 200W model comes with a standard cleaning area of 130x130mm and offers an optional 150x150mm configuration for slightly larger areas.
  • For 300W, 500W, 750W, and 1000W models, the standard cleaning area is 150x150mm, with optional configurations of 180x180mm and 290x290mm for covering larger surfaces.

These cleaning area options provide flexibility to adapt the machine’s reach based on the surface size and level of detail required, making it suitable for both precise cleaning and broader coverage. This range of configurations allows you to select the optimal cleaning area based on the machine’s power and your specific application.

Yes, wearing protective glasses is required when using the laser cleaning machine. The laser emits high-intensity light, which can be harmful to your eyes if directly exposed, even from reflected surfaces. Protective laser safety glasses are specifically designed to filter out the laser’s wavelength, providing essential protection to prevent eye damage.
In addition to eye safety, wearing protective glasses is a key part of safe operating practices when working with laser equipment. Even with the machine’s built-in safety features, taking this precaution ensures a safer work environment, particularly in industrial or high-use settings. Always ensure that the protective glasses match the specific wavelength of the laser being used for optimal protection.

Our laser cleaning machine package includes comprehensive technical support options designed to ensure smooth operation and help you maximize machine efficiency. We offer:

  • Online Technical Support: Our expert team is available remotely to assist you with any technical inquiries, troubleshooting, or guidance on machine setup and operation. This service is provided free of charge and can be accessed through various channels, including phone, email, or live chat.
  • On-Site Training (Paid Option): For customers who prefer in-depth, hands-on training, we provide an optional on-site support service. A skilled technician can visit your facility to provide customized training for your team, covering everything from machine setup to advanced operation techniques and maintenance practices. This service is ideal for teams new to laser cleaning technology or for complex applications requiring detailed instruction.

Both support options are aimed at helping you achieve the best possible results with your machine. Please let us know if you’d like further details or if you’re interested in arranging on-site training.

Our laser cleaning machine is backed by a comprehensive warranty designed to give you peace of mind and protect your investment:

  • 3-Year Warranty for the Entire Machine: This full warranty covers any defects or malfunctions in the machine as a whole, ensuring reliable performance and longevity over time.
  • 2-Year Warranty for the Laser Generator: The laser generator, a critical component of the machine, is covered for two years. This warranty assures that any issues related to the laser generator will be addressed, minimizing downtime and maintaining cleaning quality.
  • 5-Year Warranty for Core Components: Key components essential for optimal machine operation are covered for 1.5 years. This includes parts that may experience wear and tear with regular use, ensuring you have support for the most vital parts of the machine.

Please note that this warranty excludes damage resulting from improper use, mishandling, or other artificial causes.

Our laser cleaning machine is certified with internationally recognized standards to ensure quality, safety, and compliance with industry requirements.

  • CE Certification: The CE mark is a mandatory certification for products sold within the European Economic Area (EEA). This certification confirms that our laser cleaning machine meets the health, safety, and environmental protection standards required by the EEA. It ensures that the machine is built and tested in compliance with European regulations, providing users with a high level of safety and reliability.
  • FDA Certification: For the U.S. market, our machine has FDA certification, verifying that it meets the standards set by the Food and Drug Administration for laser-emitting devices. This certification ensures the machine complies with laser safety regulations, providing users with peace of mind that the machine is safe to operate and meets the strict requirements set for laser equipment in the U.S.

If additional certifications are required for specific regions or industries, please let us know, and we can provide further information.

Why Choose AccTek Laser

Factory Preset Cleaning Parameters

Unparalleled Expertise

With years of experience in laser cleaning technology, we have honed our expertise to provide cutting-edge solutions tailored to your unique needs. Our team of skilled engineers and technicians has the in-depth knowledge to ensure you get the perfect laser cleaning machine for your specific application.

Quick And Easy Setup

Comprehensive Support And Service

At AccTek Laser, we build strong relationships with our clients. Our dedicated support team provides prompt assistance and after-sales service to keep your laser cleaning machine running at its best for years to come. Your satisfaction is our top priority and we will help you every step of the way.

Easy To Operate And Maintain

Strict Quality Control

Quality is the cornerstone of our manufacturing process. Every laser cleaning machine is rigorously tested and adhered to strict quality control standards, ensuring that the product you receive meets the highest industry benchmarks. Our dedication to quality ensures you get a machine that performs consistently and delivers perfect cleans every time.

Operator Safety Features

Cost-Effective Solution

We understand the importance of cost efficiency in today’s competitive landscape. Our laser cleaning machines can provide excellent value for your investment, minimizing downtime and reducing operating costs while maximizing productivity and efficiency.
